AlexMos 32bit Controller
32 bit V4.0 controller

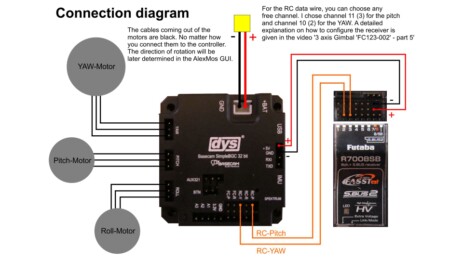

connection diagram

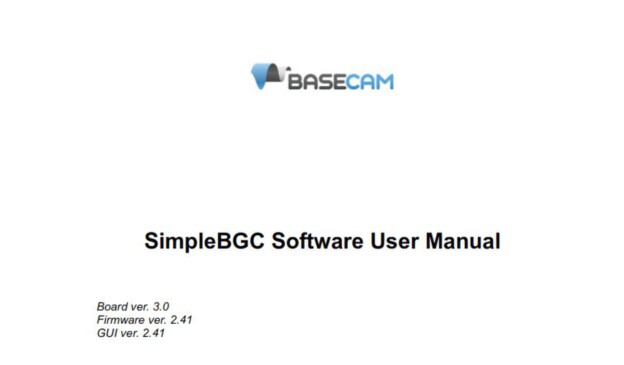

32 bit SimpleBGC manual

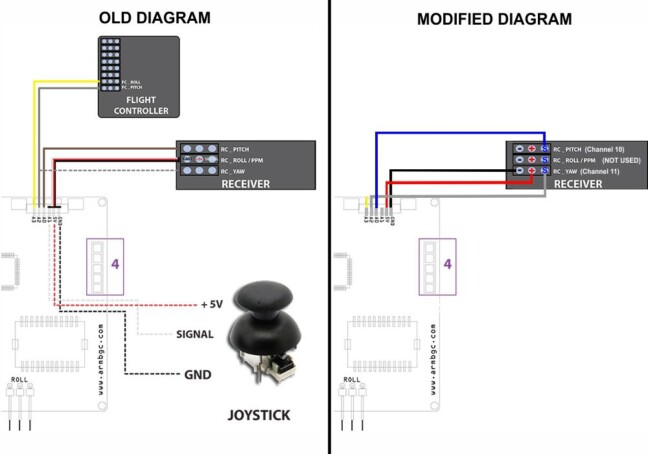

Modified receiver diagram
Programs, Diagrams and manuals are available at
AlexMos IMU orientation
Up
Down
Left and right
CHIP UP
+Z / +X

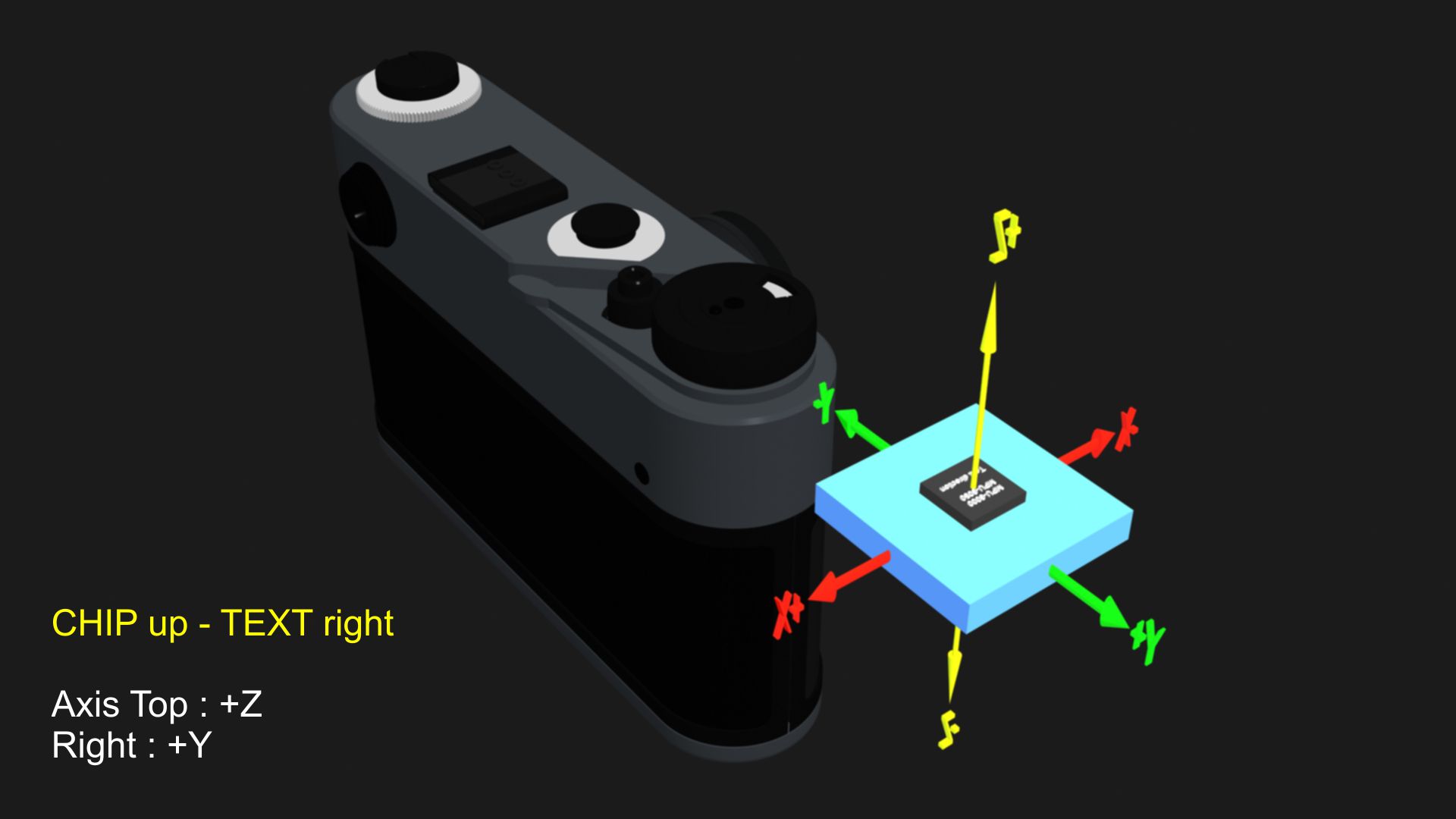

CHIP UP
+Z / +Y
CHIP UP
+Z / -X
CHIP UP
+Z / -Y

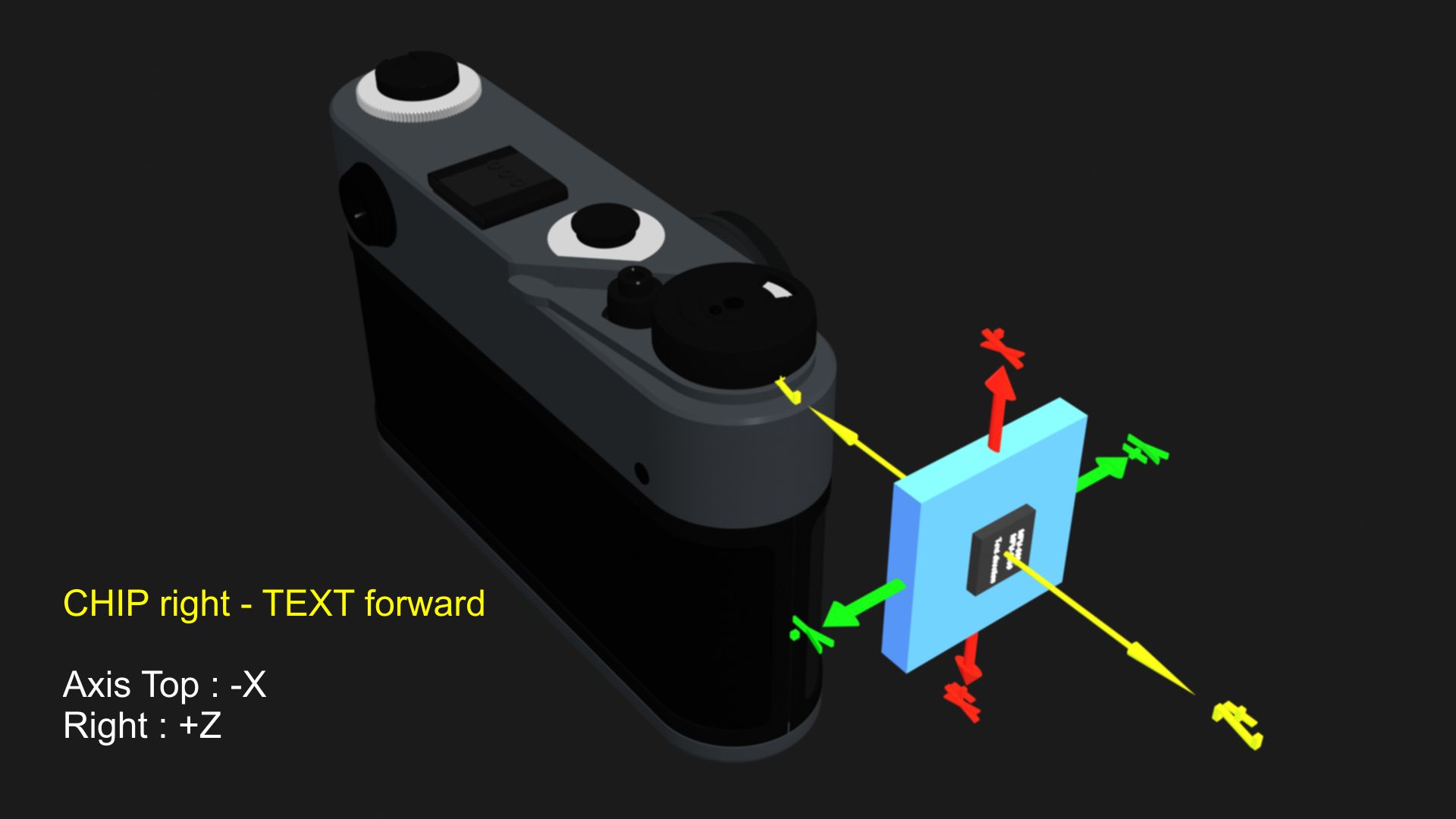

CHIP RIGHT
-X / +Z

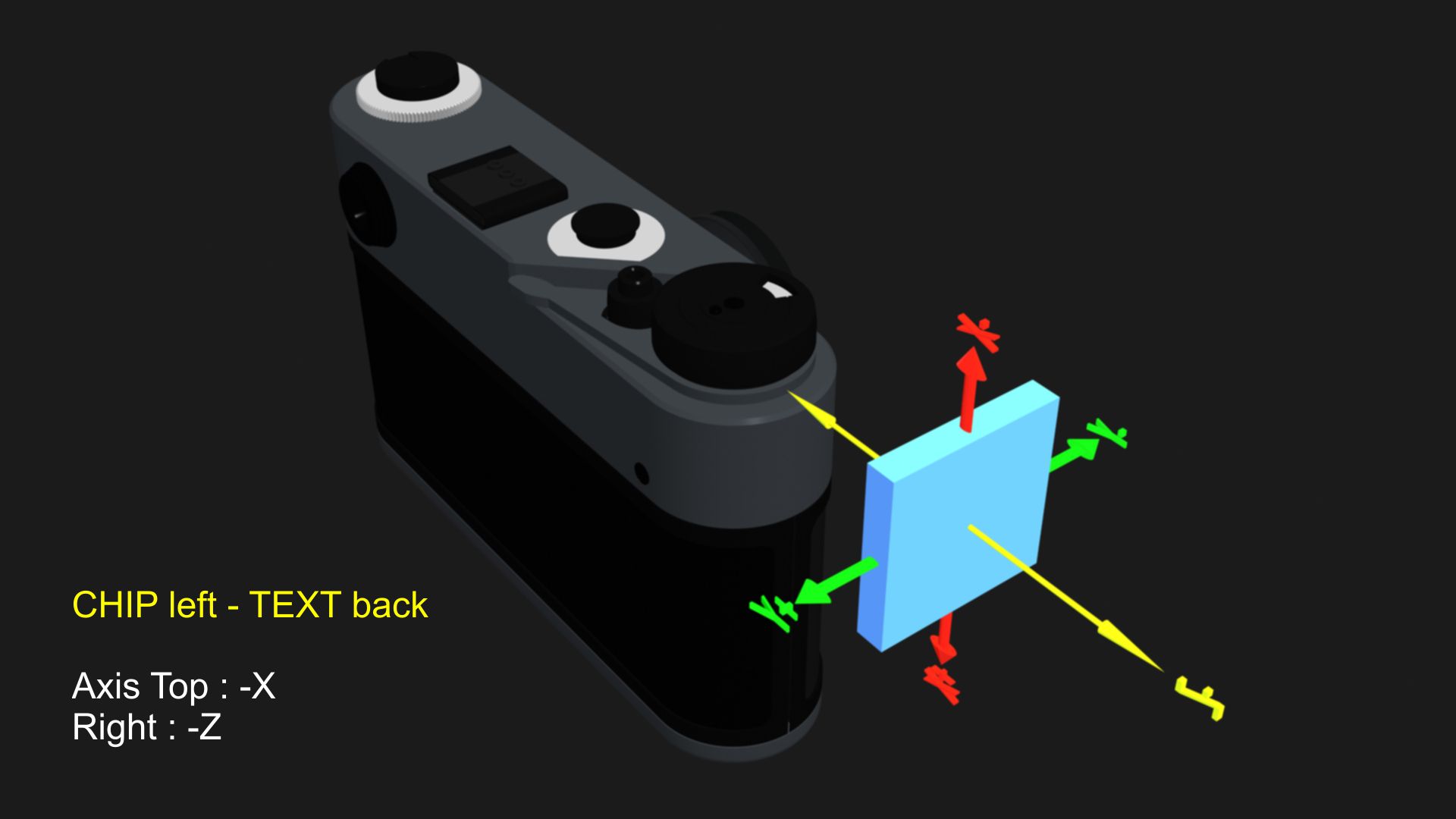

CHIP LEFT
-X / -Z
CHIP DOWN
-Z / +X

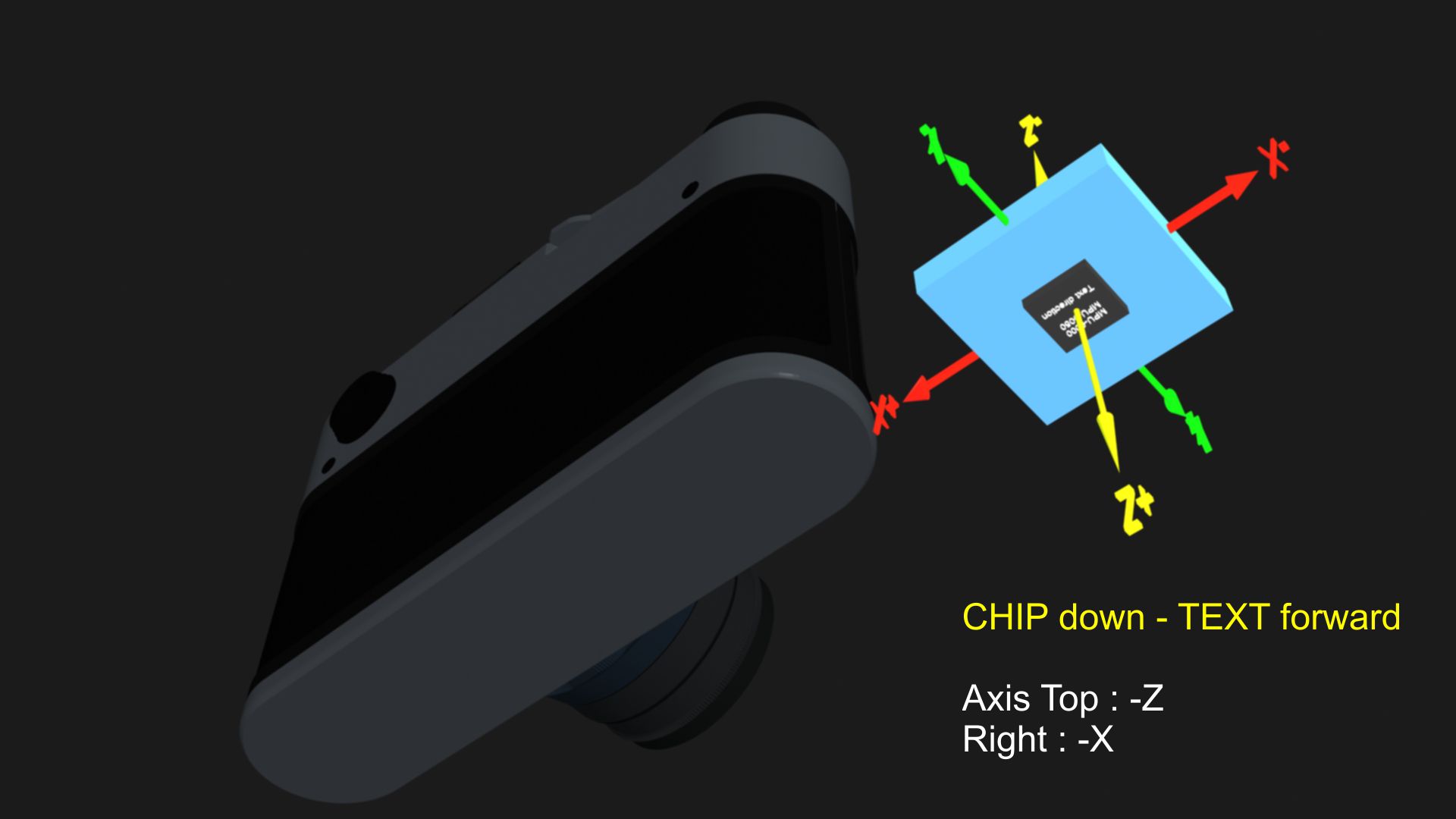

CHIP DOWN
-Z / -X
When the chip points upwards and the text of the chip points forward, the orientationis always : Axis Top : +Z, Right : +X
Arris Lander-X3

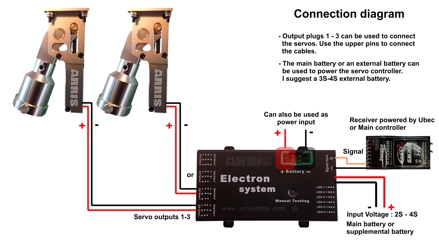

Connection diagram

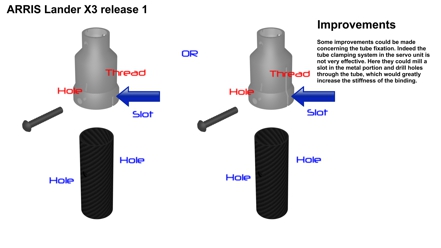

Improvements made by Arris

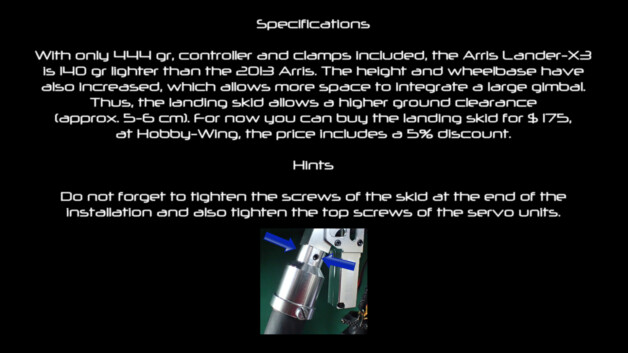

Specifications and hints
More specifications and Devo 7 fail safe configuration at
Self-made aluminium gimbal
Parts and Measures

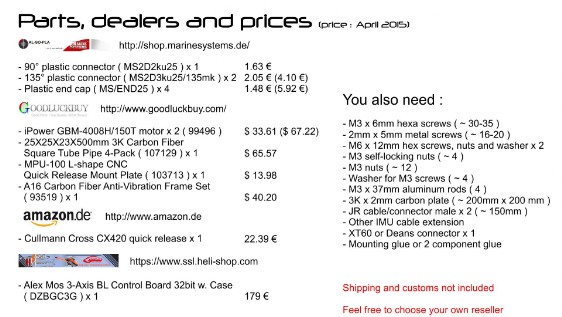

Parts

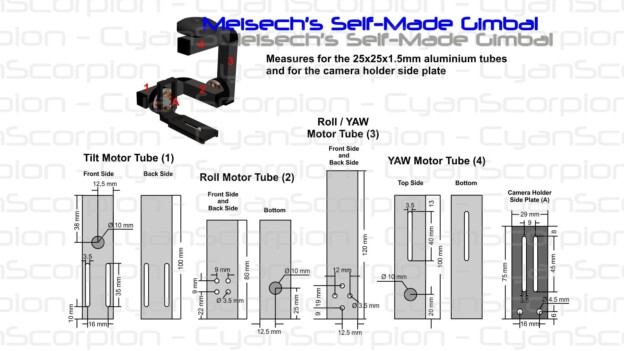

Measures
Video
YAW and Level Plate

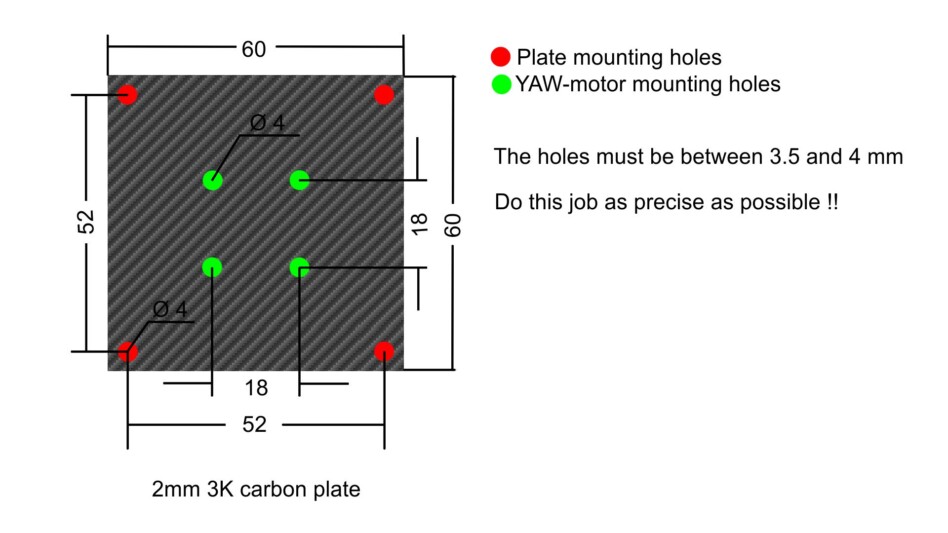

YAW Plate measures

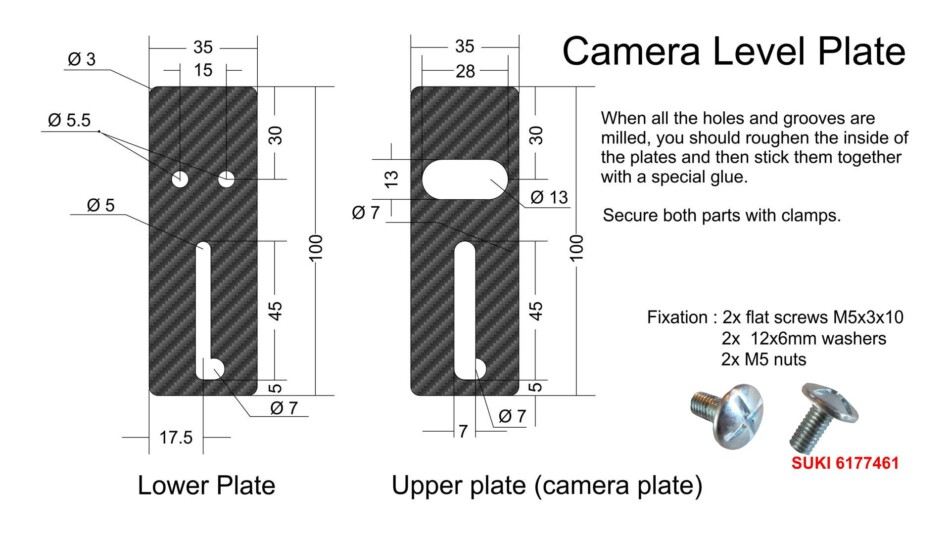

Level Plate measures
Controller and more

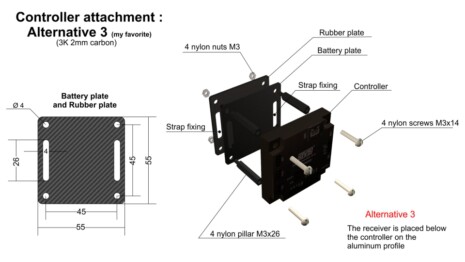

Controller Plates

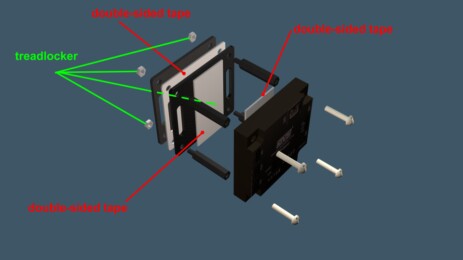

Fixation
Connection Diagram

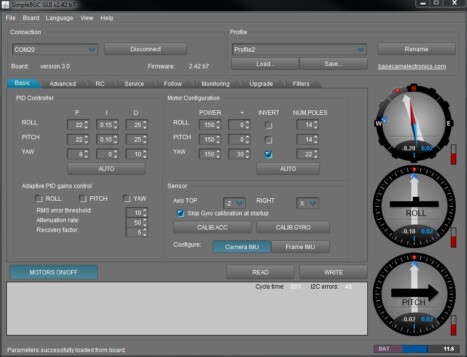

Controller Settings
Body Fixation

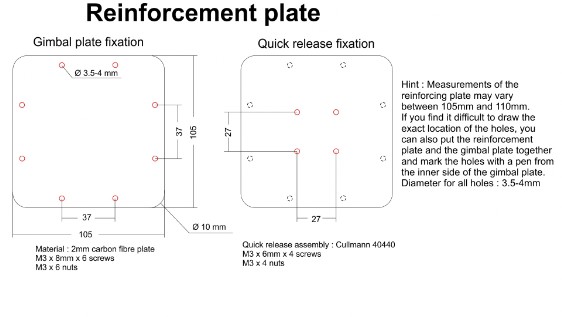

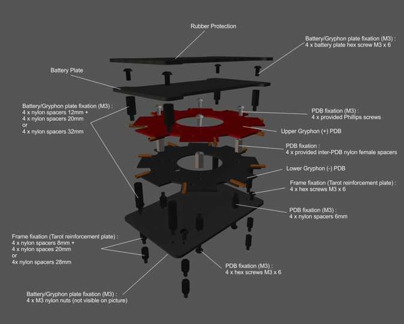

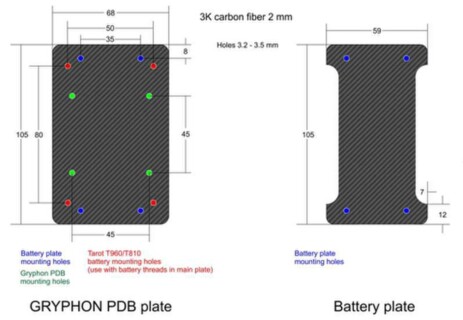

Reinforcement Plate
Parts
Assembling
Self-made carbon gimbal
Parts and Measures

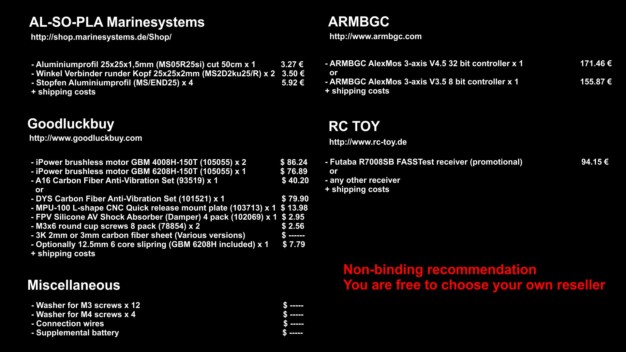

Parts

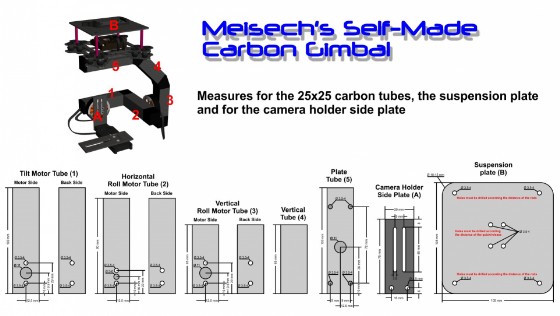

Measures
Video

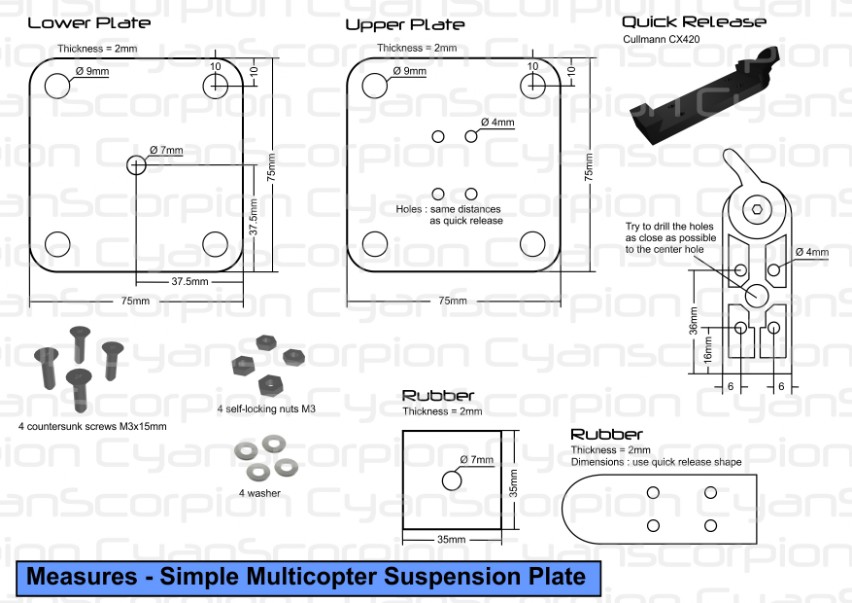

Simple Multicopter Suspension Plate
Measures
Video
Parts
Installation Diagram
Dimensions
3D Visualization
